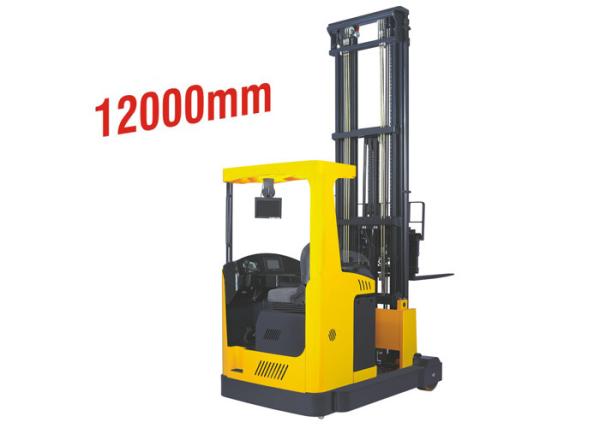

Electric Mast Narrow Aisle Truck 12000mm Lifting Height Reach Type Yellow Color

  • 1
  • 2
  • 3

Brand Name : REACH

Model Number : CQD20H

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 25 - 30 days

Packaging Details : Nude

Capacity : 2000kg

Load center distance : 600mm

Max. lifting height : 10200/11100/12000mm

Free lift : 3600/3900/4200mm

Reach distance : 700mm

Lift speed, laden/unladen : 240/300mm/s

Travel speed, laden/unladen : 9km/h

Contact Now

Electric mast reach truck narrow aisle truck offers 12000mm lifting height



Quick Details:

Product name: Electric mast reach narrow aisle truck CQD20H

Capacity: 2000kg​

Max. Lifting height: 10200/11100/12000mm

Reach distance: 700mm

​Free lift: 3600/3900/4200mm

​Fork dimension: 40/120/1070mm

​Travel speed, load/unload: 9km/h

Lift speed, load/unload: 240/300mm/s

​Lowering speed, load/unload: 500/400mm/s

​Aisle width for pallets 1000*1200 crossways: 2920mm

Aisle width for pallets 800*1200 lengthways: 2980mm

Battery: 48V500AH





Advantages:


  • ​​​AC control system.

  • Powering steering system (EPS), (standard for 10~12m, option for 8~9.5m) .

  • Electronic multi-valve.

  • Multi-function display can show: brake status, driving direction, hour meter, driving speed, fault code, etc..

  • Adjustable speed for forks lifting/lowering, mast forward/backward and side shift right/left.

  • German ZF brand gear box.

  • Adjustable steering wheel.

  • With travelling speed limited device when forks at high level.

  • Electronic height limited device.

  • Use “H” type mast steel is imported from Germany.

  • Use double controllers to realize stepless speed regulation of side shift, both lifting and travelling.

  • Have safety travelling speed limited device in the mast.








Option:

  • Side shift.

  • Height selection and height position system.

  • LCD display and camera (LCD for cold storage are available).

  • Travel/back-up flashing lights.



SPECIFICATIONS
Model   CQD20H
Capacity/rated load kg 2000
Load center distance mm 600
Drive wheel dimension mm 406*152
Fork wheel dimension mm 340*104
Height, mast lowered mm 4190/4490/4790
Free lift mm 3600/3900/4200
Lifting height mm 10200/11000/12000
Height, mast extended mm 11000/11900/12800
Height of overhead guard(cabin) mm 2200
Seat height mm 1060
Height of crura mm 355
Fork dimensions mm 40/120/1070
Overall length mm 2510
Length(from forks bracket) mm 1440
Reach distance mm 700
Length(barring fork) mm 2050
Overall width mm 1510
Fork width mm 1260
Aisle width for pallets 1000*1200 crossways mm 2920
Aisle width for pallets 800*1200 lengthways mm 2980
Turning radius mm 1920
Travel speed, laden/unladen km/h 9
Lift speed, laden/unladen mm/s 240/300
Lowering speed, laden/unladen mm/s 500/400
Battery V/Ah 48/500
Service weight kg 4840

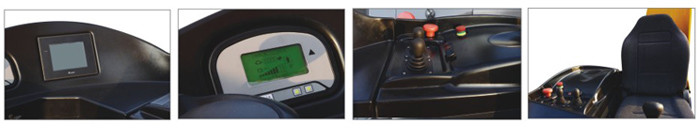

  1. Camera and positioning: Optional positioning system offers easier pallet handling at height through camera system.

  2. Precise and effortless finger tip control of mast movements and traveling.

  3. Ergonomic and full suspension comfortable seat full adjustable.

  4. Comfortable armrest and light power steering wheel.

  5. Optional of cabin.
