Mast Steel Manual Pallet Stacker Adjustable Forks With Integral Pump

Shanghai Reach Industrial Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

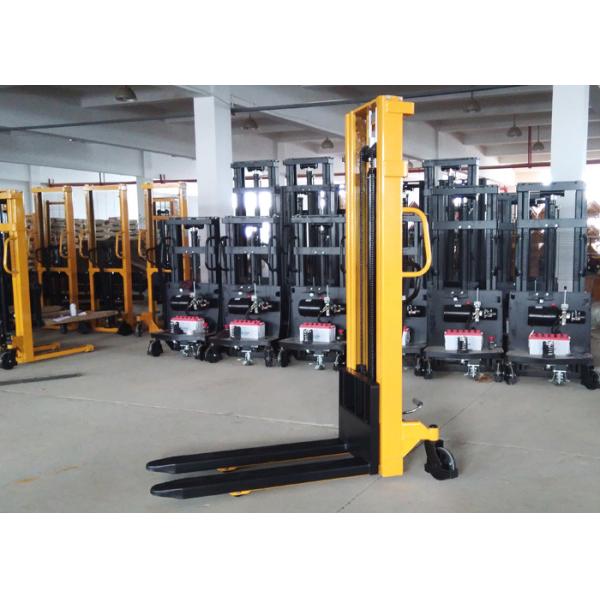

Mast Steel Manual Pallet Stacker Adjustable Forks With Integral Pump

Brand Name : REACH

Model Number : SDA

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 25 - 30 days

Packaging Details : 1set / pallet

Capacity : 1000/1500/2000kg

Max. lifting height : 1600/2500/3000mm

Height, mast lowered : 2080/1830/2080mm

Height, mast extended : 2080/3000/3500mm

Width overall forks : 550/660mm

Turning radius : 1200mm

Lift speed, laden/unladen : 9.5/10.5mm/stroke

Lowering speed, laden/unladen : Hand control

Service weight : 250-340kg

Contact Now



High quality mast steel manual stacker with adjustable forks 1000-2000kg capacity 1600-3000mm lifting height



Quick Details:

Capacity: 1000-2000kg

Lifting height: 1600-3000mm





Advantages:

  • ​​High quality C-steel mast ensures high capacity, rigidity, durability.

  • Integral pump, which prevents loosening, leak-proof.

  • High efficiency pump, operating lighter, more comfortable.

  • Lifting speed keeps smooth regardless of loading weight, which is safe to use.

  • The stacker can be lifted by handle or foot pedal.

  • Hand control valve precises control convenience.

  • Set the active safety valve to prevent overloading of use.

  • Maintenance-free design, ensures security, reduces service cost.



Option:

  • ​​Straddle legs with adjustable forks.

  • Adjustable wide legs.





SPECIFICATIONS
Model   SDA
Load capacity kg 1000/1500/2000
Load center distance mm 500/400
Height, mast lowered mm 2080/1830
Max. lifting height mm 1600/2500/3000
Height, mast extended mm 2080/3000/3500
Fork lowered height mm 90
Overall length mm 1280
Overall width mm 700/980
Fork dimensions mm 60/142/900(1100)
Width overall forks mm 550/660
Ground clearance, centre of wheelbase mm 25
Turning radius mm 1200
Lift speed, laden/unladen mm/stroke 9.5/10.5
Lowering speed, laden/unladen m/s Hand control
Service weight kg 250-340
