Counterbalanced Electric Stacker Forklift , AC Motor Electric Pallet Truck Stacker

Counterbalanced electric reach stacker warehouse forklift trucks 1500kg with AC motor


Quick Details:

Model: Reach stacker electric warehouse forklift trucks CQD15R
​​​Capacity: 1500kg
Lift height: 2500-5600mm
Fork dimensions: 35/100/950(1070/1150)mm
Travel speed, load/unload: 6.8/7km/h

​Lift speed, load/unload: 0.13/0.16m/s

​Lower speed, load/unload: 0.45m/s
Battery: 24V270Ah


Advantages:

​

Structural​

• Two lifting cylinders placed on outer sides of the mast.
• ​Germany imported special steel mast.
• ​Vertical driving wheel, driving efficiency, easy installation & maintenance.
• Compact structure and low gravity.
• Forks can be tilted backward, or forwards, it is beneficial to stacking, load and unload.

Safety and efficiency

• ​AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
• Tilting system forks easy for loading and stacking.
• High storage battery ensures strong and long-lasting power.
• Meter with BDI. Prolonging the battery’s using time.
• The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
• With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
• The adjustable regulator valve can adjust the lowing speed of the masts.
• Low-voltage protection, prolong battery life-span.

Easy maintenance

• Magnet suction battery cover, easy for installation and maintenance.
• AC controlling system, low noise, less maintenance.

Counterbalanced electric reach stacker warehouse forklift trucks ​CQD15R


electric warehouse forklift

warehouse lift truck

1500kg electric pallet truck stacker

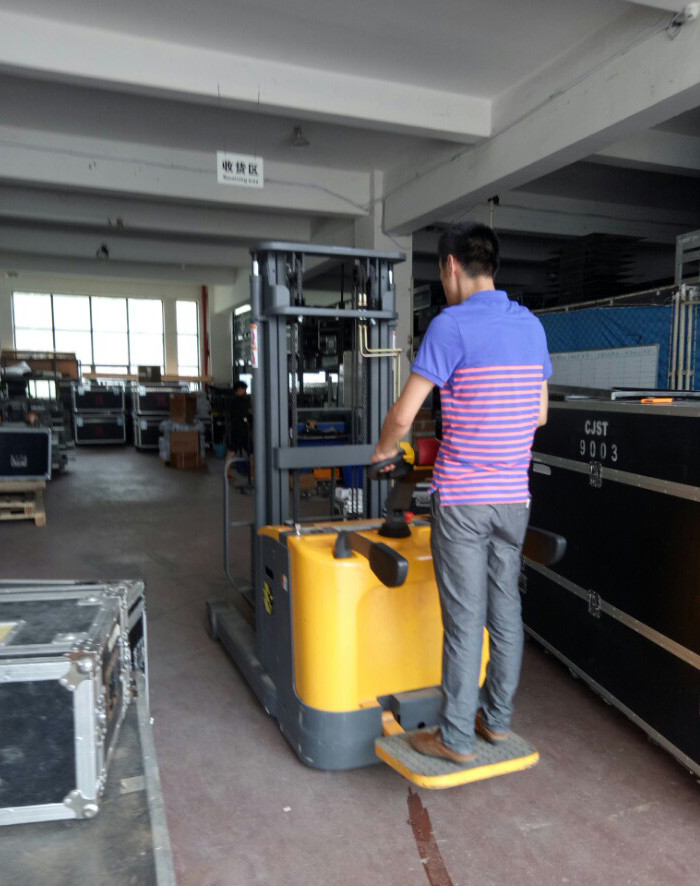

Counterbalanced Electric Stacker Forklift , AC Motor Electric Pallet Truck Stacker Images
